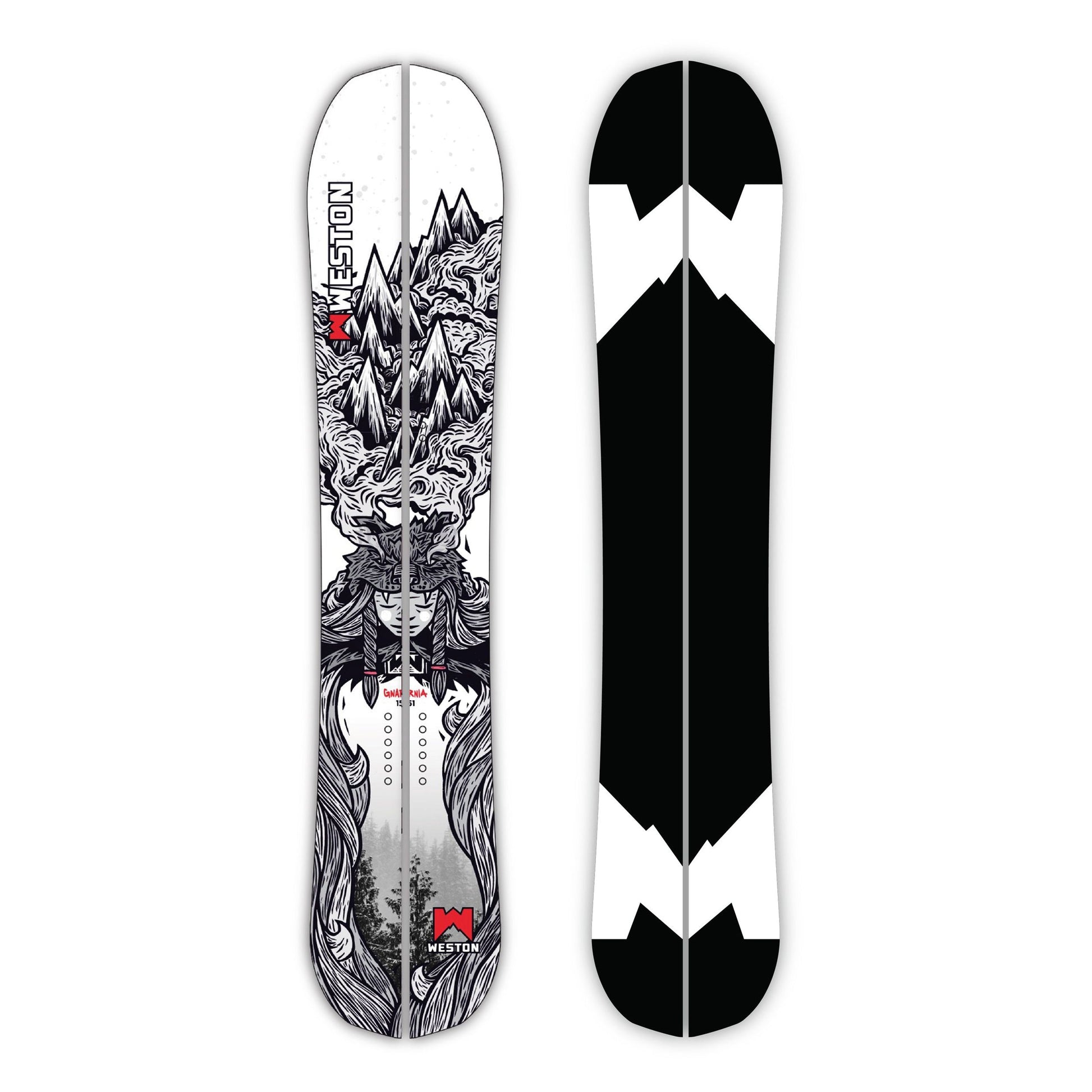

• The Weston Gnarnia Carbon splitboard with white and black graphics in the style of John Fellows.
1 3

Weston

Gnarnia Carbon Splitboard

Gnarnia Carbon Splitboard

$ 1,349.00 USD
$ 1,349.00 USD
Sale Sold out

In stock

Built for the biggest lines. Tuned for the longest missions.

The Gnarnia Carbon Splitboard is our high-octane upgrade to the already versatile Gnarnia - designed for big mountain senders, dawn patrol addicts, and anyone who wants maximum performance with minimum weight on the skintrack. We took our trusted freeride shape and infused it with a high-response carbon layup, plus a featherweight core to create a splitboard that’s light on the uphill, yet locked-in and powerful on the down.

Crafted with the same directional shape, setback stance, and moderate taper as the standard Gnarnia Split, this carbon edition floats with ease in deep snow while staying composed in technical terrain but where it really shines is the construction. The Strike Split Core blends paulownia and poplar with aluminum stringers for strength and snap without excess grams, while Bamboo Inserts boost torsional rigidity for edge hold you can trust when things get steep and spicy.

It’s finished with all the splitboard features Weston is known for - SplitTech edges for uphill grip and tail-shifted balance for easier kick turns, a Rugged Topsheet for long-term durability, Full Perimeter UHMW Sidewalls to protect against rocks and rough transitions, and Skinlock System compatibility for smooth transitions. Like everything we build, it’s rider-tested and guide-approved, backed by our 4-Year Warranty and Board Slayer Program.

If your ideal day includes 4,000 vert before lunch and a technical descent under headlamp, the Gnarnia Carbon Split is your new ride-or-die.

Designed in Colorado, Manufactured at GP87
Artwork by: John Fellows


this is an image of the general profile and shape of the Gnarnia Splitboard. Including carbon stringer placements and camber.






View full details

TECH

FEATURES

  • Wood Composition || Poplar | Paulownia | Bamboo Inserts | Aluminum Stringers
  • Shape || Tapered Directional
  • Camber Profile || Freeride
  • Topsheet || Castor Bean Based Rugged Nylon
  • Layup Fibers || Carbon Fiber
  • Additional Reinforcements || Flax Touring Bracket and Inserts Plates
  • Base Material || PTex 5920 Graphite + Aluminum Tip
  • Sidewall || Ultra-High-Molecular-Weight Polyethylene (UHMW)
  • Split-Tech || Shifted Touring Bracket Position
  • Clips || Phantom Herc Hooks
  • Tip & Tail Clips || Phantom Spinner
  • Skin Attachment || Tip Holes + Tail Notches

SIZING

Size (cm) Recommended Rider Weight (lb / kg) Recommended Rider Height (in / cm) Max Boot Size (US Men) Max Boot Size (US Women) Mondo Euro
151 105-165 / 48-75 64-68 / 1.63-1.73 8 9 26 40.5
158 125-185 / 57-84 67-71 / 1.70-1.80 10 11 28 43
162 145-205 / 66-93 69-74 / 1.78-1.88 12 13 30 45.5
162W 165-225 / 75-102 69-74 / 1.78-1.88 14 15 32 48

SKIN COMPATIBILITY

Size Skin Selection
151 Splitboard Skin 1
158 Splitboard Skin 3
162 Splitboard Skin 4
162W Splitboard Skin 5

SPECS

Gnarnia Carbon Splitboard Specs

Size (cm) Effective Edge (cm) Sidecut (mm) Waist Width (cm) Tip / Tail Width (cm) Taper (mm) Setback (mm) Board Weight (lb / g)
151 115 9.5/7.6/7.3/8.6 24.6 29 / 28.1 9 10 5.64 / 2550
158 122 9.9/8/7.7/9 25.6 30.4 / 29.5 9 20 6.81 / 3080
162 125 10/8.1/7.8/9.1 26.2 31.0 / 30.1 9 20 7.04 / 3200
162W 125 10/8.1/7.8/9.1 27.3 32.2 / 31.3 9 20 7.50 / 3410
